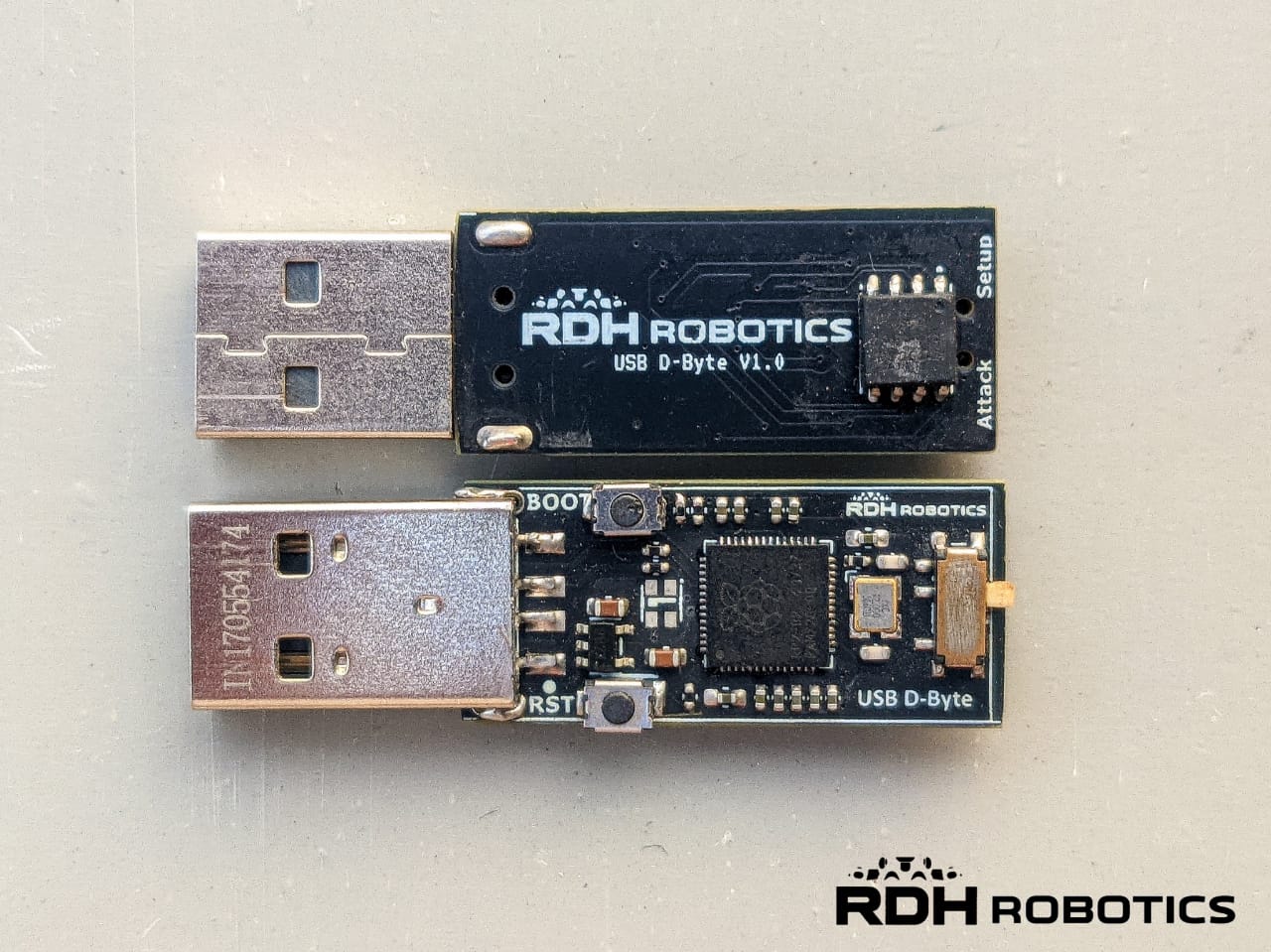

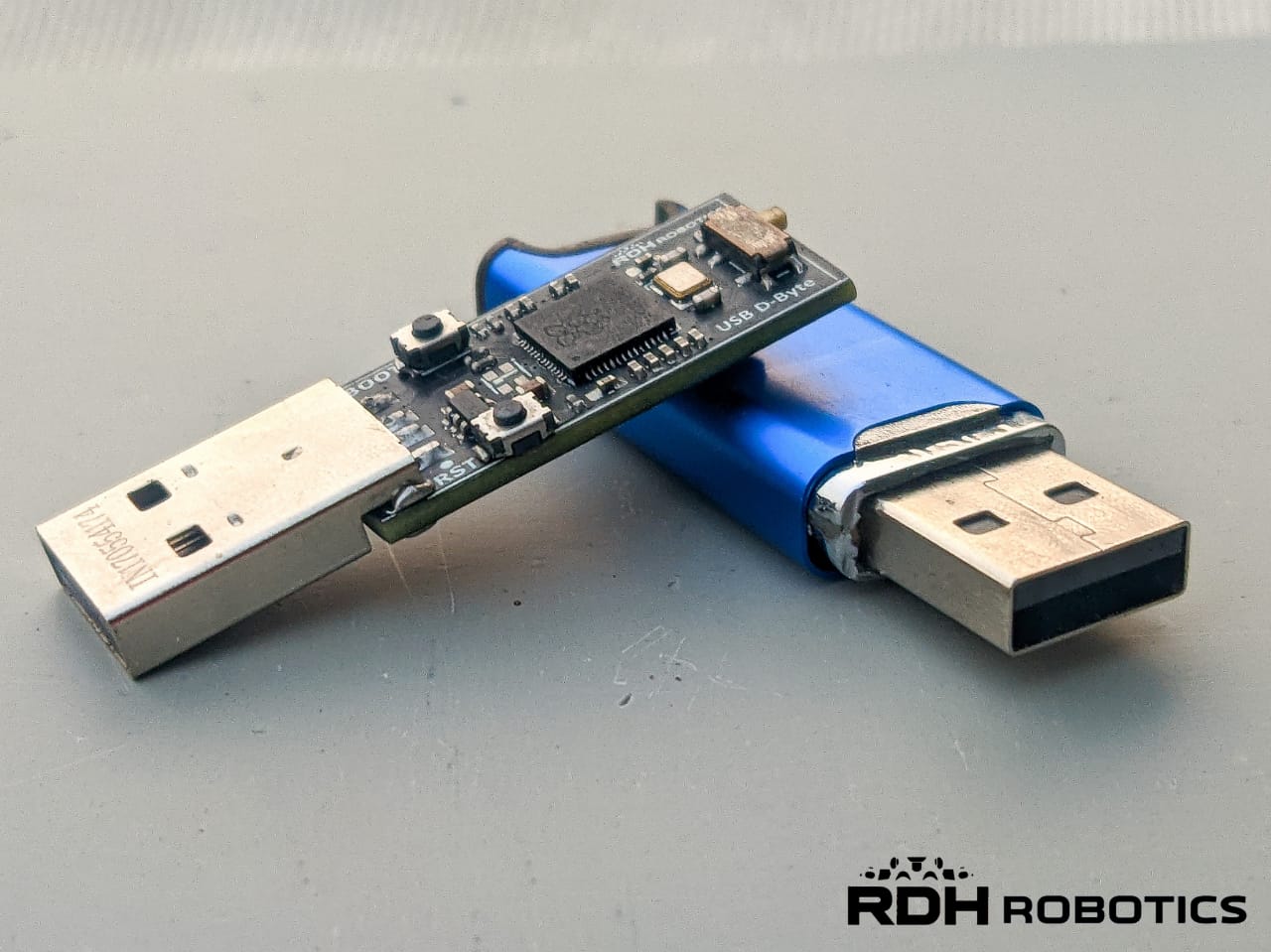

USB D-Byte

USB D-Byte is a compact and powerful USB device that emulates a keyboard—just like the USB Rubber Ducky and other BadUSB tools. What sets it apart is its sleek design, ease of use, and advanced features that make payload deployment faster, smarter, and more flexible.

Key Features

Plug & Play Script Deployment: Simply drag and drop your payloads—no need for SD cards or WiFi.
Dual Mode Operation: Effortlessly switch between Attack Mode and Setup Mode.
USB Mass Storage Support: Recognized as a USB flash drive for easy access and file management.
Advanced Scripting Functions: New powerful commands to enhance payload flexibility and control.
Multi-Language Keyboard Support: Compatible with a wide range of international keyboard layouts.
HID Emulation: Acts as a USB keyboard and mouse, including boot keyboard support for BIOS-level access.
Custom USB Identity: Easily modify VID, PID, serial number, manufacturer name, and more.
Fully Open-Source: Source code and firmware available for modification and customization.
Built-in USB-A Connector: No adapters required—just plug directly into any USB-A port.

Specs USB D-Byte

Dimensions: 38mm x 16.5mm x 6.5mm
Dual-core 133 MHz 32-bit CPU
4/8/16 MB SPI flash
2 Position Mode Switch (Attack & Setup)
USB-A plug
Reset & boot button

Scripting: Basics

USB D-Byte's script language is compatible with Ducky Script (1.0). However, some functions and keys were added or expanded. You can find a great Ducky Script quick reference at docs.hak5.org.

Basic Rules

A single space separates the keys
All keys as part of the same line get pressed and released simultaneously
To write text, use the STRING function
Upper and lower case matters!

Example	Explanation
`WINDOWS R`	Press the Windows key and the R key simultaneously
`STRING Hello World`	Write "Hello World"

Example Script

REM Hello World Example Script
DEFAULTDELAY 200
DELAY 1000
GUI r
STRING notepad
ENTER
DELAY 1000
STRING Hello World!

Line	Explanation
`REM This is a comment`	Comment something.
`DEFAULTDELAY 200`	Set the default delay between each line to 200 milliseconds.
`DELAY 1000`	Wait 1 second.
`GUI r`	Press the Windows key and the R key simultaneously to open the run window.
`STRING notepad`	Type "notepad".
`ENTER`	Press enter key to launch the Windows Notepad application.
`DELAY 1000`	Wait 1 second.
`STRING Hello World!`	Type "Hello World!" into the newly opened notepad window.

Scripting: Functions

Command	Example	Description
`#` or `REM`	`# Hello World!`	Comment
`DEFAULTDELAY` or `DEFAULT_DELAY`	`DEFAULTDELAY 200`	Time in milliseconds between every command
`DELAY`	`DELAY 1000`	Delay in milliseconds
`STRING`	`STRING Hello World!`	Types the following text
`STRINGLN`	`STRINGLN Hello World!`	Like STRING but presses enter at the end
`REPEAT` or `REPLAY`	`REPEAT 3`	Repeats the previous line n times

Keyboard Layout

Tip: You can also change the default keyboard layout in the preferences.json. That way, you don't have to use LOCALE in your script.
Use LOCALE to change the keyboard layout. This is necessary for everyone who's not using the US keyboard.
Otherwise, your BadUSB might type the wrong characters.

LOCALE DE
STRING Gänsefüßchen

Available Keyboard Layouts

Region	Standard Layout	Mac Layout	Note
Belgium 🇧🇪	BE	BE_MAC
Bulgaria 🇧🇬	BG	BG_MAC
Canada 🇨🇦	CA-CM, CA-FR	CA-FR_MAC
Switzerland 🇨🇭	CH-DE, CH-FR	CH-DE_MAC, CH-FR_MAC
Czech Republic 🇨🇿	CZ	CZ_MAC
Germany 🇩🇪	DE	DE_MAC
Denmark 🇩🇰	DK	DK_MAC
Estonia 🇪🇪	EE	EE_MAC
Spain 🇪🇸	ES	ES_MAC
Latin-America 🌎	ES-LA	ES-LA_MAC
Finland 🇫🇮	FI	FI_MAC
France 🇫🇷	FR	FR_MAC
United Kingdom 🇬🇧	GB	GB_MAC
Greece 🇬🇷	GR	GR_MAC
Croatia 🇭🇷	HR	HR_MAC	Since v1.2.1
Hungary 🇭🇺	HU	HU_MAC
Ireland 🇮🇪	IE	-
India 🇮🇳	IN	IN_MAC
Iceland 🇮🇸	IS	IS_MAC
Italy 🇮🇹	IT	IT_MAC
Latvia 🇱🇻	LT	LT_MAC
Lithuania 🇱🇹	LV	LV_MAC
Netherlands 🇳🇱	NL	NL_MAC
Norway 🇳🇴	NO	NO_MAC
Poland 🇵🇱	PL	PL_MAC
Brazil 🇧🇷	PT-BR	PT-BR_MAC
Portugal 🇵🇹	PT	PT_MAC
Romania 🇷🇴	RO	RO_MAC
Russia 🇷🇺	RU	RU_MAC
Sweden 🇸🇪	SE	SE_MAC
Slovenia 🇸🇮	SI	SI_MAC
Slovakia 🇸🇰	SK	SK_MAC
Turkey 🇹🇷	TR	TR_MAC
Ukraine 🇺🇦	UA	UA_MAC
United States 🇺🇸	US	US_MAC

Multi-Line Comments

If you have a lot to say, you can use multi-line comments using ###:

###
The quick brown
fox jumps over
the lazy dog
###

Large Strings

For longer texts, use LSTRING_BEGIN and LSTRING_END. Everything between those two commands, including linebreaks, gets typed out:

LSTRING_BEGIN
The quick brown
fox jumps over
the lazy dog
LSTRING_END

Loops

To repeat one or more lines, you can use LOOP_BEGIN and LOOP_END, which works just like a for-loop:

LOOP_BEGIN 3
STRING Hello
DELAY 1000
STRINGLN World!
LOOP_END

Imports

With IMPORT, you can start running another script from within a script! This is particularly useful if you want to split your script into multiple files for better readability - instead of having one gigantic script.

IMPORT second_script.txt

LED

Control the onboard LED with the LED function.
You can either set the color (R, G, or B) and mode (SOLID, SLOW, FAST, or OFF):

LED R SOLID
LED G SLOW
LED B FAST

Or you can set a specific RGB color value (0-255):

LED 42 13 37

And optionally, you can also set a blink interval in milliseconds (r,g,b, blink):

LED 42 13 37 500

Custom Keycodes

The KEYCODE function sends specified keycodes to the target computer. You can use it to press any key or combination possible. This is particularly useful if a key is not specified in the script language.
This example presses shift and a, resulting in an "A":

KEYCODE 0x02 0x04

The first argument specifies the modifiers (like shift, ctrl, or alt). The second argument is a key; you can specify up to 6 keys.
Values can be in decimal or hexadecimal:
KEYCODE modifier key1 [key2] [key3] [key4] [key5] [key6]

Scripting: Keys

Standard Keys

a - z, A - Z, 0 - 9, F1 - F12

Modifier Keys

CTRL or CONTROL
SHIFT
ALT
GUI or WINDOWS or COMMAND

Other Keys

ENTER
MENU or APP
DELETE
HOME
INSERT
PAGEUP
PAGEDOWN
UP or UPARROW
DOWN or DOWNARROW
LEFT or LEFTARROW
RIGHT or RIGHTARROW
TAB
END
ESC or ESCAPE
SPACE
PAUSE or BREAK
CAPSLOCK
NUMLOCK
PRINTSCREEN
SCROLLLOCK

Numpad Keys

NUM_0 - NUM_9
NUM_ASTERIX
NUM_ENTER
NUM_MINUS
NUM_DOT
NUM_PLUS

Scripting: Mouse

Command	Example	Description
`MOVE x y` or `MOUSE x y`	`MOVE 100 0`	Move the mouse cursor
`CLICK button` or `MOUSE_CLICK button`	`CLICK 1`	Click a mouse button
`PRESS button` or `MOUSE_PRESS button`	`PRESS 2`	Keep pressing a mouse button
`RELEASE button` or `MOUSE_RELEASE button`	`RELEASE 2`	Release a mouse button
`SCROLL v h` or `MOUSE_SCROLL v h`	`SCROLL -10 0`	Scroll vertically or horizontally

Mouse Buttons

Button	Description
0	Left button
1	Right button
2	Middle button
3	Backward button
4	Forward button

Preferences

1.2 preferences.json

The preferences.json file lets you configure the default behavior of your USB D-Byte device. Place this file in the root directory of the device's storage. The device will read these preferences on startup.

{

  "$schema": "https://raw.githubusercontent.com/RDHRobotics/D-Byte/refs/heads/main/schema.json",
  "enable_msc": false,
  "enable_led": true,
  "enable_hid": true,
  "vid": "16D0",
  "pid": "11A4",
  "version": "0100",
  "serial": "1337",
  "manufacturer": "RDH Robotics",
  "product": "USB D-Byte",
  "default_layout": "US",
  "default_delay": 5,
  "main_script": "main_script.txt",
  "attack_color": [
    128,
    0,
    0,
    0
  ],
  "setup_color": [
    0,
    0,
    20,
    0
  ],
  "idle_color": [
    0,
    30,
    0,
    0
  ],
  "disable_capslock": true,
  "run_on_indicator": false,
  "initial_delay": 1000

}

Setting	Default Value	Explanation
`enable_msc`	false	Enable USB mass storage (USB drive) in attack mode
`enable_led`	true	Enable RGB LED
`enable_hid`	true	Enable HID in setup mode
`vid`	16D0	USB Vendor ID
`pid`	11A4	USB Product ID
`version`	0100	USB Product Revision (0100 => 1.00)
`serial`	1337	USB serial number descriptor
`manufacturer`	RDH Robotics	USB manufacturer descriptor
`product`	USB D-Byte	USB product descriptor
`default_layout`	US	Default Keyboard Layout (see all available layouts)
`default_delay`	5	Default delay between each line
`main_script`	main_script.txt	Name of your BadUSB script
`attack_color`	[128,0,0,0]	LED color for attack mode
`setup_color`	[0,0,20,0]	LED color for setup mode
`idle_color`	[0,30,0,0]	LED color for finished attack
`disable_capslock`	true	(*) Turn off capslock before starting attack
`run_on_indicator`	false	(*) Start script when the user presses capslock, numlock, or another indicator key
`initial_delay`	1000	Startup delay

Tip: If you want to use a different keyboard layout, set default_layout here so you don't need to specify it in every script.

Credits

This project is based on USB Nova by SpacehuhnTech.
Firmware and hardware have been modified under the terms of the MIT and CERN-OHL-P-2.0 licenses.

Thank you to the open-source community for making innovation accessible to all.
